Before any drilling or demolition begins, there’s one question you shouldn’t ignore: what’s behind the surface? In many existing buildings in Little Rock, plumbing systems were installed years, if not decades, ago. And if accurate as-built drawings are missing or outdated, this uncertainty can result in broken pipes and flooded interiors.



Our indoor plumbing mapping removes the guesswork. We use precision survey equipment that can locate pipes within walls, floors, and ceilings, all while protecting your interiors.

When Do You Need Plumbing Layout Services?

In existing buildings, hidden plumbing lines can complicate even the most straightforward projects. Our mapping services are useful in the following scenarios, offering an understanding of what’s behind walls or beneath slabs, so decisions are made confidently

Renovation and Retrofit Projects

For existing buildings with undocumented changes to plumbing, every cut into a wall or slab can be a risk. Mistakes disrupt operations or violate health codes, especially in offices, restaurants, and hospitals.


The way we approach work varies slightly by building type. However, the core process is the same: establish control points, capture precise measurements, and map pipe locations relative to the building structure. Depending on the scope of the project, we can further support with related services like construction surveys and staking property corners. Typically, we charge by the hour for our mapping services.

Clash Detection and Coordination

In commercial settings, plumbing lines can weave through electrical conduit, ductwork, and structural framing. It is then common for new installations to turn into conflicts. Our surveyors help prevent this disruption by mapping pipe elevations and exact routing paths.


The final plumbing layouts can be overlaid with mechanical, electrical, and structural plans. More importantly, contractors can verify clearances before installation begins, not when conflicts arise. This can also save time and money while a project is underway if a pipe is “lost” or mislabeled and mapping needs to be executed.

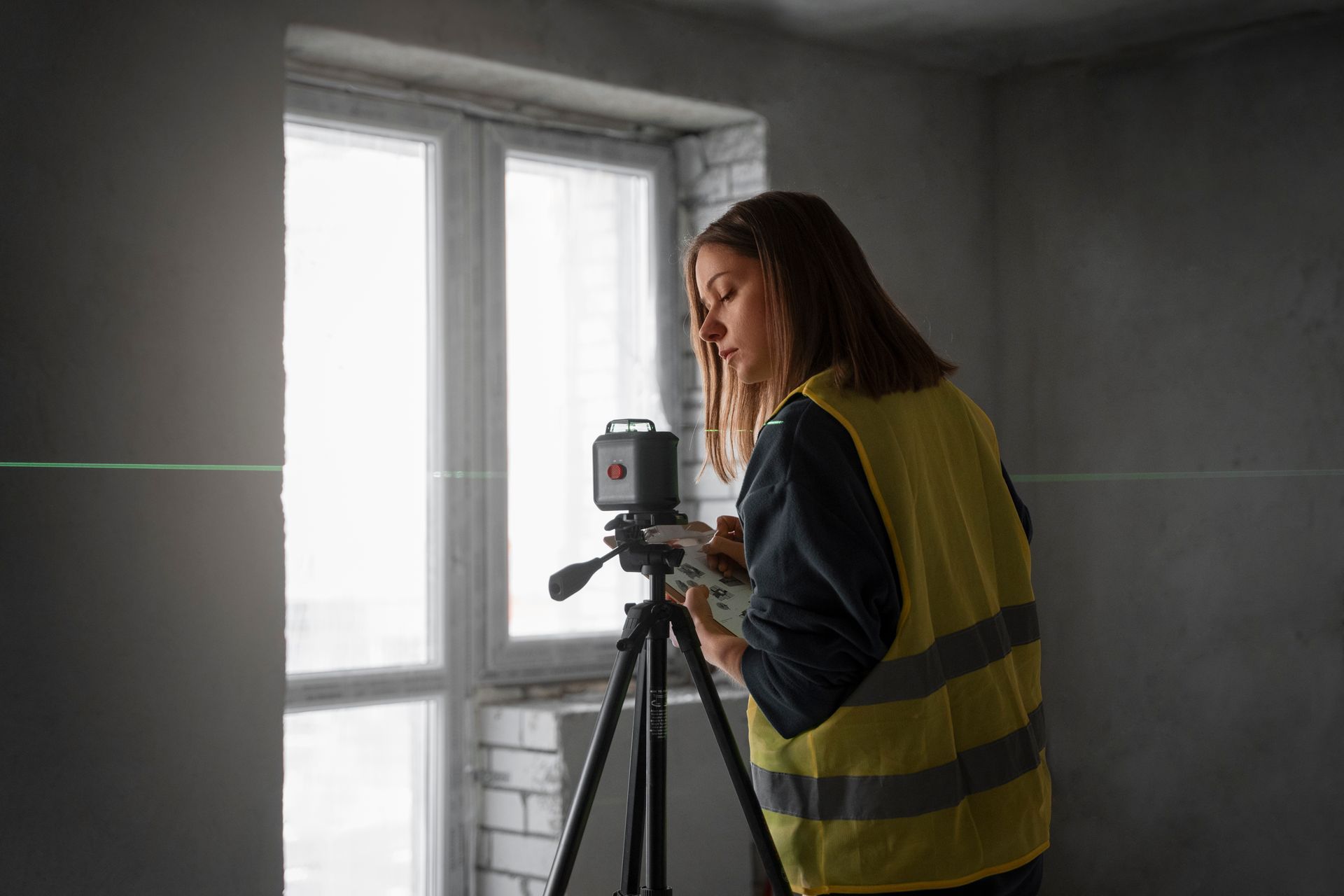

A worker in a yellow safety vest is using a tripod-mounted laser level in an unfinished room in Pettaway.

How Our Plumbing Layout Survey Works

Our indoor plumbing mapping has a structured workflow. We begin with a site walkthrough to understand your building’s layout. We find visible plumbing elements and set up a consistent reference system, so all recorded measurements align correctly.


Field data is collected using a total station or a robotic total station, both of which are used for high-accuracy surveying. The latter is ideal for tighter interior spaces, as it can be operated by one person.


Using the data we collect, we mark key locations on-site and/or provide CAD layouts that integrate with your construction plans.

Why Choose Our Surveying Team in Little Rock

With indoor plumbing mapping, we do more than just find pipes. We translate hidden plumbing systems into usable construction data using advanced technology. The final deliverables depend on the project requirements and how the field data will be used but we can accommodate your specific requests. For larger projects, the output can be provided in formats that support engineering workflows, like coordinate files or as-built updates.


At First Survey Little Rock, our main focus is on delivering information that clients can immediately rely on in the field—from planning through construction. Ready to start your project with accurate mapping? Give us a call at 501-799-7581 or fill out our online contact form.

Frequently Asked Questions

  • Is indoor mapping destructive?

    A surface drainage system collects and conveys excess water from the surface of a site so it won't cause disrepair. Utilizing features like slopes, swales, drains and gutters, it directs the accumulated precipitation to nearby drains to help prevent overflow, erosion, and damage to infrastructure. It is usually used in flat areas with poor natural drainage to cope with heavy volumes of surface water.

  • Do you need access to the entire building?

    Full access is helpful for multi-floor plumbing systems. Generally, surveyors need access to key plumbing points, including restrooms, mechanical rooms, and utility closets.

  • How accurate is the mapping?

    With a robotic total station, indoor mapping is highly precise. It can pinpoint locations accurately, usually within a few millimeters.

  • How long does mapping indoor plumbing take?

    Mapping interior pipes can take anywhere from several hours to a few days, depending on the project’s complexity. With a robotic total station, speed is around two to three times faster.
